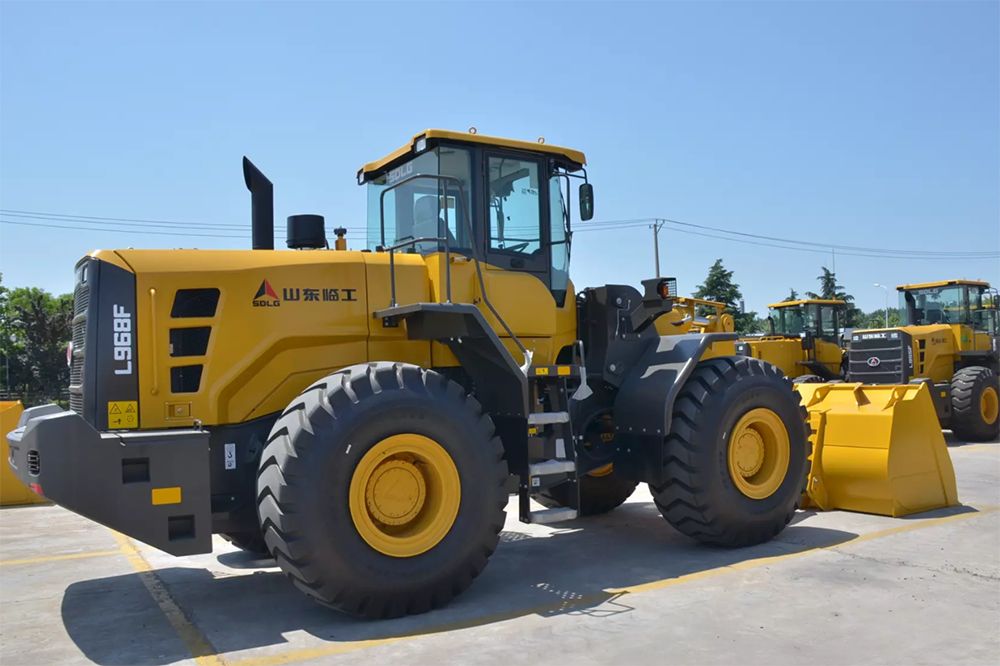

SDLG L968F Loader 6-ton loader for sale (2).jpg

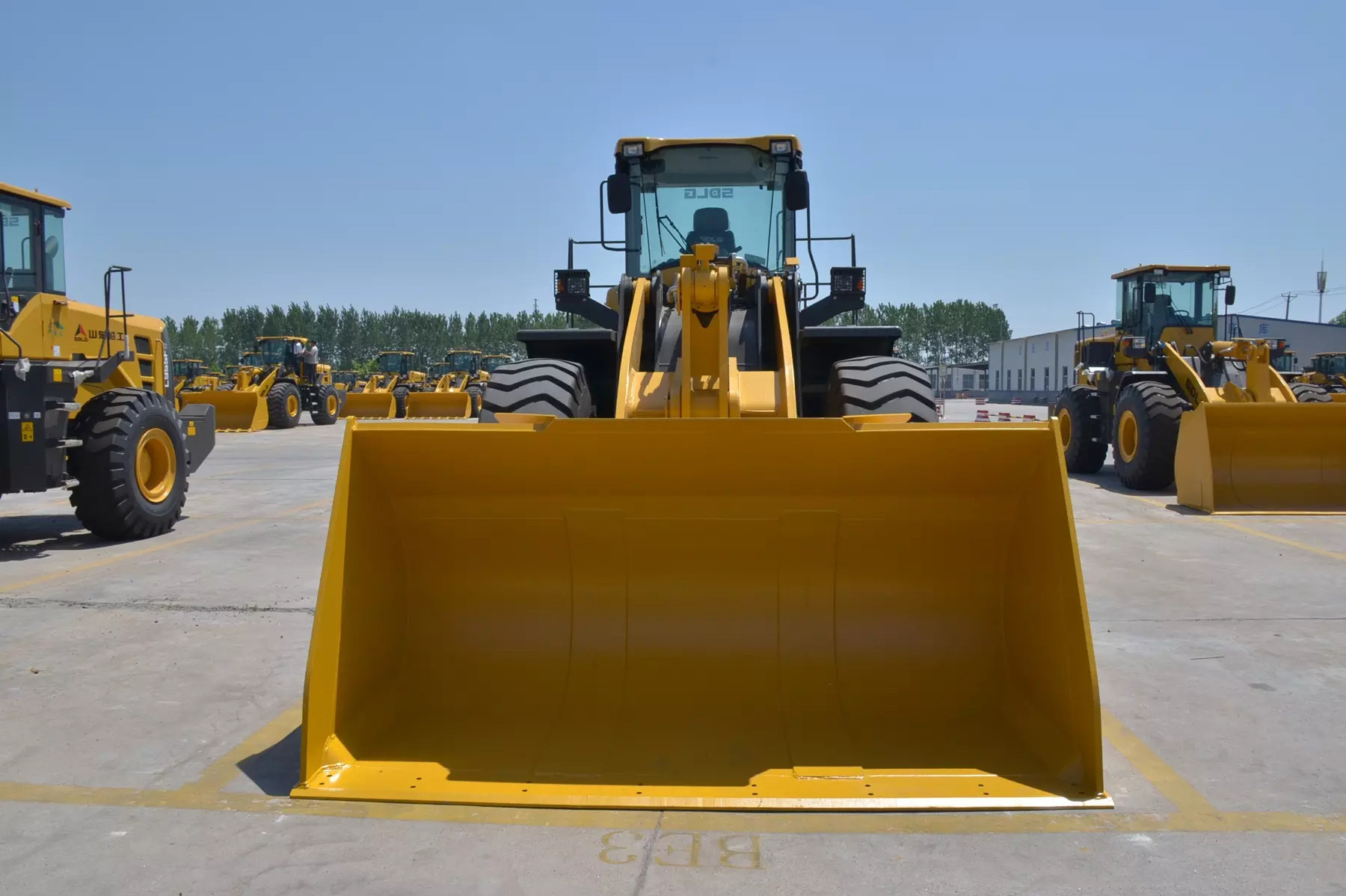

SDLG L968F Loader 6-ton loader for sale (1).jpg

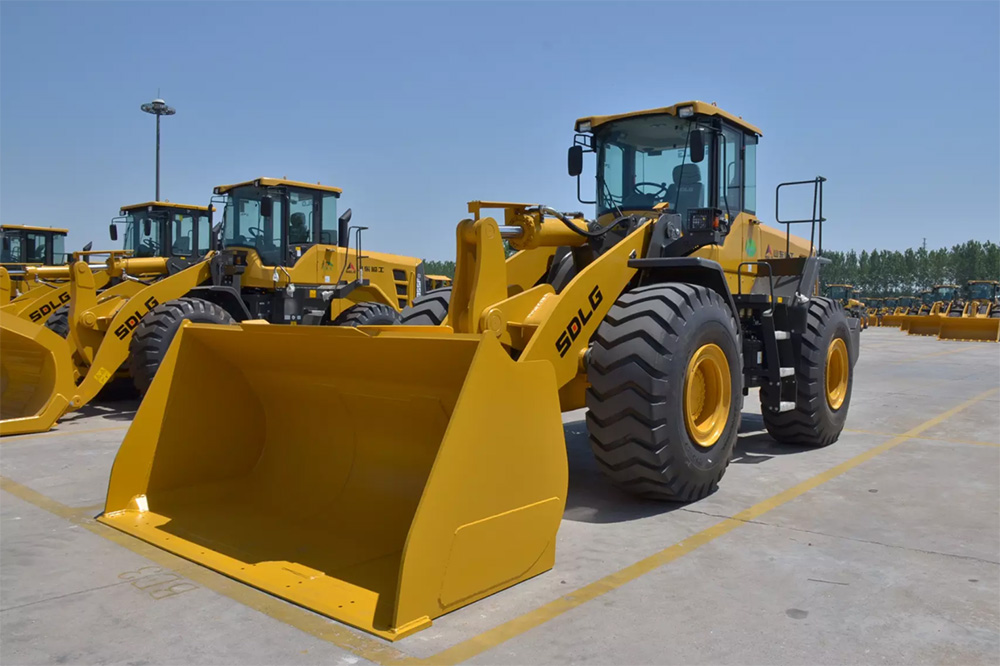

SDLG L968F Loader 6-ton loader for sale

L968F Wheel Loader, a 6-ton loader, is available for sale. It combines power and durability, ideal for construction and mining tasks. This model features efficient operation, high lifting capacity, and reliable performance, making it a valuable addition to any equipment fleet.

L968F

Product Introduction

Reliable

Energy-efficient

Comfortable

Convenient

1. The Weichai WD10G240E202 engine offers high power reserve, strong torque, low fuel consumption, and low emissions, ensuring exceptional performance, high quality, and reliability.

2. The VRT200 gearbox features front and rear four-gear positions, improving transmission efficiency and offering a larger transmission ratio in forward positions, enhancing overall efficiency by over 8%.

3. The Lingong reinforced drive axle, with a strengthened design and strict quality control, includes a rear swing-type support, boosting reliability, bearing capacity, and extending service life by 50%.

4. The new generation frames, designed with VOLVO technology, feature optimized load distribution, rational structure, and double the fatigue life compared to previous designs.

5. The working hydraulic system utilizes high-end Parker multiway valves and Permco working pumps, known for their reliability and high efficiency.

6. The steel engine hood, produced with automotive-grade molds, has a streamlined structure with welded points removed, enhancing both its aesthetic appeal and strength.

The electric control high-pressure common rail engine, which boosts torque by 12%, provides enhanced power performance, contributing to overall energy efficiency and reduced fuel consumption.

1. The electric control engine reduces noise and vibration compared to mechanical engines, increasing operational comfort and a smoother driving experience.

2. The new generation cab, with a 15% increase in space, offers enhanced safety and comfort, while the curved front windshield provides an expansive view for the operator.

SDLG L968F Loader 6-ton loader for sale (1)e8a

1. The engine and heat dissipation hoods are designed with large openings, facilitating easier access for maintenance and repairs.

2. The oil cylinder features a unified design with standard seals, simplifying the storage of accessories and maintenance tasks.

3. The centralized control mode for the electric system includes a control box for fuses and relays, streamlining inspection and maintenance processes.

SDLG L968F Loader 6-ton loader for sale (2)6ee

Product parameters

1. Parameter

2. Dimension

3.Engine

4.Transmission system

5.Steering system

6.Working equipment

7. Oil filling amount

01020304050607

Rated bucket capacity	3.5（opt 3.0～5.0）	Minimum steering radius (outside of rear wheel)	6062 mm
Rated carrying-capacity (kg)	5500	Transverse passing radius (outside of bucket)	7485 mm
Maximum traction force (kN)	180 kN	altitude	-
Tipping load	≥110 kN	ambient temperature	-
Maximum breakout force	≥180 kN	wading depth	-
Forward I	0～7 km/h	Forward Ⅱ(km/h)	0～13 km/h
Forward Ⅲ(km/h)	0～28 km/h	Forward Ⅳ(km/h)	0～38km/h
Reverse I (km/h)	0～7 km/h	Reverse II	0～13 km/h
Reverse III	0～28 km/h	Reverse IV	0～38 km/h

Overall length (mm)	9520	Overall width (mm)	3200
Outside width of wheel	2925 mm	Wheel track	-
Overall height (mm)	3470	wheelbase（mm）	3400
Dumping angle	-45°	Maximum dumping height	3875 mm
Number of axles	2	Corresponding dump reach	1276 mm
Maximum lifting height of fork horizontal section(mm)	-	Total mass (kg)	21500
Minimum ground clearance	530 mm	Axis pin at maximum lift height	5000 mm
Wheelbase (front/rear)(mm)	-	-	-

Engine model/Drive Motor Model	WP10G240E342	Number of cylinders	6
Engine type	In-line、 water-cooled、 dry sleeve、 direct injection	Bore/stroke	126/130 mm
Engine power (KW)	178	Minimum fuel consumption	≤210 g/kw.h
Rated engine speed	2100 r/min	Maximum torque (N.m)/rotation speed (r/min)	1100/1500
Displacement (ml)	9726	Emission standard	GB 20891-2014（China Ⅲ emission）

Type of torque converter	Single-stage three-element single turbine torque converter	Torque ratio	2.34
Oil cooling mode	Air cooling	Oil pressure of torque converter inlet	0.8～1.0 MPa
Oil pressure of torque converter outlet	0.57～0.69 MPa	Transmission type	Counter-shaft electric liquid shift
Shifting gears	forward 4 reverse 4	Gear ratio of forward I	4.625
Gear ratio of forward Ⅱ	2.383	Gear ratio of forward Ⅲ	1.028
Gear ratio of forward Ⅳ	0.650	Gear ratio of reverse I	4.583
Gear ratio of reverse II	2.361	Gear ratio of reverse III	1.019
Gear ratio of reverse IV	0.645	Model of variable-speed pump	P360A367 (DRPBB)ZA25-6/HPT2-50
Working pressure of shifting	1.9～2.3 MPa	Main drive type	First transmission of spiral bevel gear
Main drive reduction ratio	4.11	Wheel reduction type	One-stage planetary reduction
Wheel reduction ratio	5.6	Drive type	CHANGCHAI four-wheel drive
Tyre size	26.5-25	Front tyre pressure	0.40±0.01 MPa
Rear tyre pressure	0.35±0.01 MPa	Type of foot brake	Air-over-oil caliper disc brake
Brake pressure (MPa)	0.7 MPa	Parking brake type	Electric air-controlled caliper disc brake

Type of steering system	Load sensing	Model of priority valve	VLH-240S-16
Steering pump model	HPT3-112/P124-10	Steering cylinder - bore x rod diameter x stroke	90×50×480 mm
Steering gear model	Xce180-1000	Steering angle (°)	38°
Working pressure of steering system	16 MPa	-	-

Type of working device	Double ball handle hydraulic pilot control	Boom cylinder - bore × rod diameter × stroke	180×100×746 mm
Turning bucket cylinder - bore x rod diameter x stroke	210×110×565 mm	Model of working pump	P360A3** (DUPBB)ZA17-6/HPT2-50
Displacement of working pump (ml/r)	100	Model of multi-way valve	KM300-21
Model of pilot valve	PCL402-4MBM3H3B-C	Working pressure of working device hydraulic system	21 MPa
Bucket lift time (full load)	≤5.8 s	Bucket fall time (no load)	≤3.7 s
Bucket dumping time (no load)	≤1.2 s	Time sum of three items	≤10.7 s

Diesel filling capacity of fuel tank	350 L	Oil filling capacity of axles (main drive and wheel reducer)	40+40 L
Oil tank filling capacity	220 L	Engine oil filling capacity	20 L
Transmission oil filling capacity	19.5/4.7L	Refueling of antifreeze coolant	55 L
Oil filling capacity of braking system	4 L	-	-
