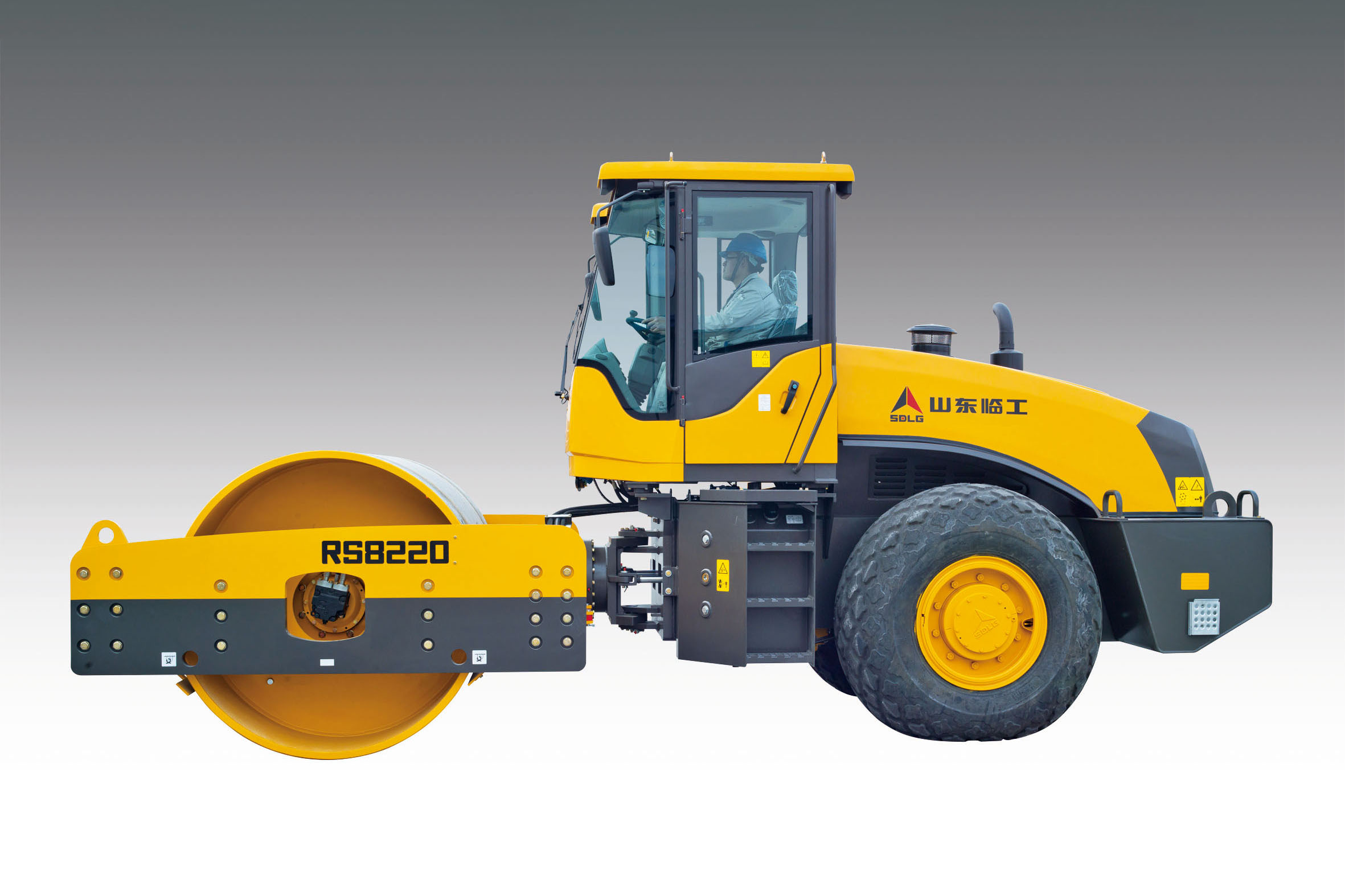

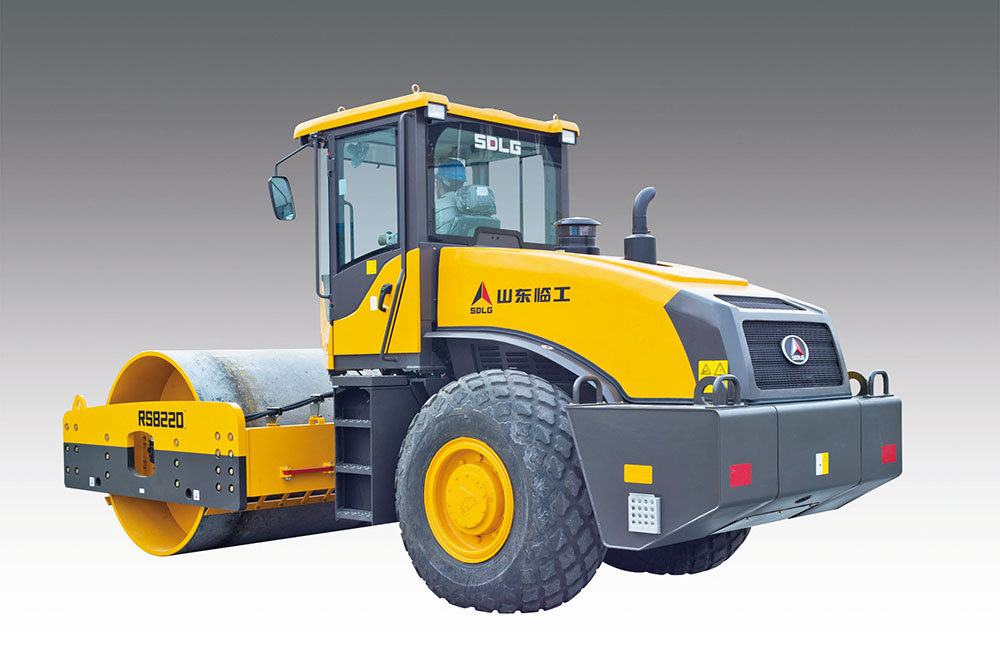

SDLG RS8200 Road roller 20ton Single Drum Roller
RS8200
Product Introduction
The RS8200 mechanical single drum vibratory road roller is a robust and highly efficient machine, designed for a range of compaction tasks on various surfaces. This model is powered by the Weichai Deutz engine, which provides strong performance while achieving approximately 18% lower fuel consumption compared to previous models. The engine also includes a starting enrichment function to enhance reliability and power delivery.
The roller features a reinforced drive axle from SDLG’s latest design, which ensures high bearing capacity and dependable performance. The mechanical countershaft transmission includes three forward gears and two reverse gears, offering smooth and stable gear shifts with a neutral start and reverse warning function for improved operational safety and comfort.
For vibratory functions, the roller is equipped with a PERMCO vibratory pump and motor, known for their consistent quality and reliable performance. The frame of the roller is constructed from high-quality sheet metal, providing a well-balanced load distribution and high durability.
The front and rear frames are connected by a slewing ball bearing, which facilitates easy assembly and disassembly while ensuring maintenance-free operation. The patented exciting mechanism from SDLG maintains high amplitude and frequency consistency on both sides of the vibratory drum, resulting in effective compaction. The international standard vibratory bearings offer excellent stability and reliability.
Cooling efficiency is maximized with the radiator system, which features an inline arrangement and a sealing spacer that separates the cool and hot areas to enhance cooling performance. The ratchet-controlled hand throttle allows for precise speed setting during vibrating operations, improving the compaction results.
The fully-enclosed cab is ergonomically designed to provide a spacious, bright, and comfortable working environment with a broad field of vision. It includes an integrated electrical system for easier inspection and maintenance, with a digital instrument cluster that ensures excellent human-machine interaction and real-time machine monitoring.
The engine hood, equipped with an electrically-controlled linear actuator, allows for easy, one-button opening and provides a wide angle for maintenance access. Optional OTR tyres and pad-feet can be added to meet diverse customer needs, making the RS8200 a versatile choice for various construction and compaction tasks.
Product parameters
Nominal amplitude (mm) |
2.0／1.0 |
Minimum outside steering radius (mm) |
6600 |
Vibration frequency (Hz) |
28/35 |
Maximum gradability |
30％ |
Exciting force (kN) |
360／280 |
Static line load (N/cm) |
455 |
Forward I(km/h) |
0～2.5 |
Forward Ⅱ(km/h) |
0～4.9 |
Forward Ⅲ(km/h) |
0～11.7 |
Forward Ⅳ(km/h) |
- |
Reverse I (km/h) |
0～2.5 |
Reverse II(km/h) |
0～4.9 |
Reverse III(km/h) |
0～11.7 |
Reverse IV(km/h) |
- |
Altitude（m） |
- |
Ambient temperature（℃） |
- |
Wading Depth（mm） |
- |
- |
- |
Overall length (mm) |
6370 |
Vibration pump width (mm) |
2150 |
Overall width (mm) |
2320 |
Wheel track |
- |
Overall height (mm) |
3185 |
wheelbase（mm） |
3441 |
Minimum ground clearance (mm) |
407 |
Total mass (kg) |
20000 |
Swing angle（°） |
- |
Work quality (before/after) (kg): |
（10000/10000） |
Engine model/Drive Motor Model |
WP6G175E201 |
Number of cylinders |
6 |
Engine type |
In-line、 water-cooled、 four-stroke、 direct injection |
Bore/stroke（mm） |
105/130 |
Engine power (KW) |
129 |
Minimum fuel consumption(g/kW.h) |
≤215 |
Rated engine speed(r/min) |
2000 |
Maximum torque (N.m)/rotation speed (r/min) |
680 |
Displacement (ml) |
6750 |
Emission standard |
GB 20891-2007 |
Clutch type |
Single-disc dry clutch |
Specification of driven disc |
380 |
Separating force (N) |
3630 |
Pressing force (N) |
14800～16500 |
Separating stroke (mm) |
10 |
Transmission type |
Counter-shaft power shift |
Shifting gears |
forward 3 reverse 3 |
Gear ratio of transmission forward I |
8.936 |
Gear ratio of transmission forward Ⅱ |
4.543 |
Gear ratio of transmission forward Ⅲ |
1.900 |
Gear ratio of transmission reverse I |
8.936 |
Gear ratio of transmission reverse Ⅱ |
4.543 |
Gear ratio of transmission reverse Ⅲ |
1.900 |
Model of variable-speed pump |
PGP511A0160CBbH2ND5D4B1B1 |
Working pressure of shifting(MPa) |
- |
Main drive type |
First reduction of spiral bevel gear |
Main drive reduction ratio |
5.286 |
Wheel reduction type |
One-stage planetary reduction |
Wheel reduction ratio |
4.941 |
Type of drive axle |
Rear wheel drive |
Tyre size |
23.1－26-12PR |
Rear tyre pressure（MPa） |
0.2 |
Type of foot brake |
Air-over-oil caliper disc brake |
Brake pressure (MPa) |
0.6～0.8 |
Parking brake type |
Manual drum brake |
- |
- |
Type of steering system |
Full hydraulic steering gear |
Steering pump model |
GBGJ1025，Traffic:60 L/min |
Steering pump displacement |
- |
Steering cylinder - bore x rod diameter x stroke |
100×45×282 |
Steering gear |
BZZ6－500A full hydraulic steering gear |
Steering gear displacement |
- |
Steering angle (°) |
35° |
Working pressure of steering system（Mpa） |
16MPa |
Vibration, walking hydraulic system
Vibration mode |
Closed-type system |
Vibration system manufacturer |
SAUER |
Vibration pump model |
90R055-DD-1-NN-80-P-4-S1-C-03-GBA-35-35-24 |
Vibration pump displacement (mL/r) |
55 ml/r |
Vibrating motor model |
90M055-NC0N-8-N0-S1-W-00-NNN-0000-E6 |
Vibrating motor displacement (mL/r) |
55 ml/r |
Model of walking pump |
- |
Displacement of walking pump (ml/r) |
- |
Model of front travel motor |
- |
Displacement of front travel motor (ml/r) |
- |
Model of rear travel motor |
- |
Displacement of rear travel motor (ml/r) |
- |
Reducer model |
- |
Reducer gear ratio |
- |
Fuel filling capacity（L） |
270 |
Oil filling capacity of axles (main drive and wheel reducer)（L） |
16+2×5 |
Hydraulic oil filling capacity（L） |
125L |
Transmission oil filling capacity（L） |
25 |
Engine oil filling capacity（L） |
16 |
Oil filling capacity of braking system（L） |
2 |
Filling capacity of water radiator antifreeze coolant |
- |
Gear oil filling capacity of vibrating drum vibration chamber |
- |
