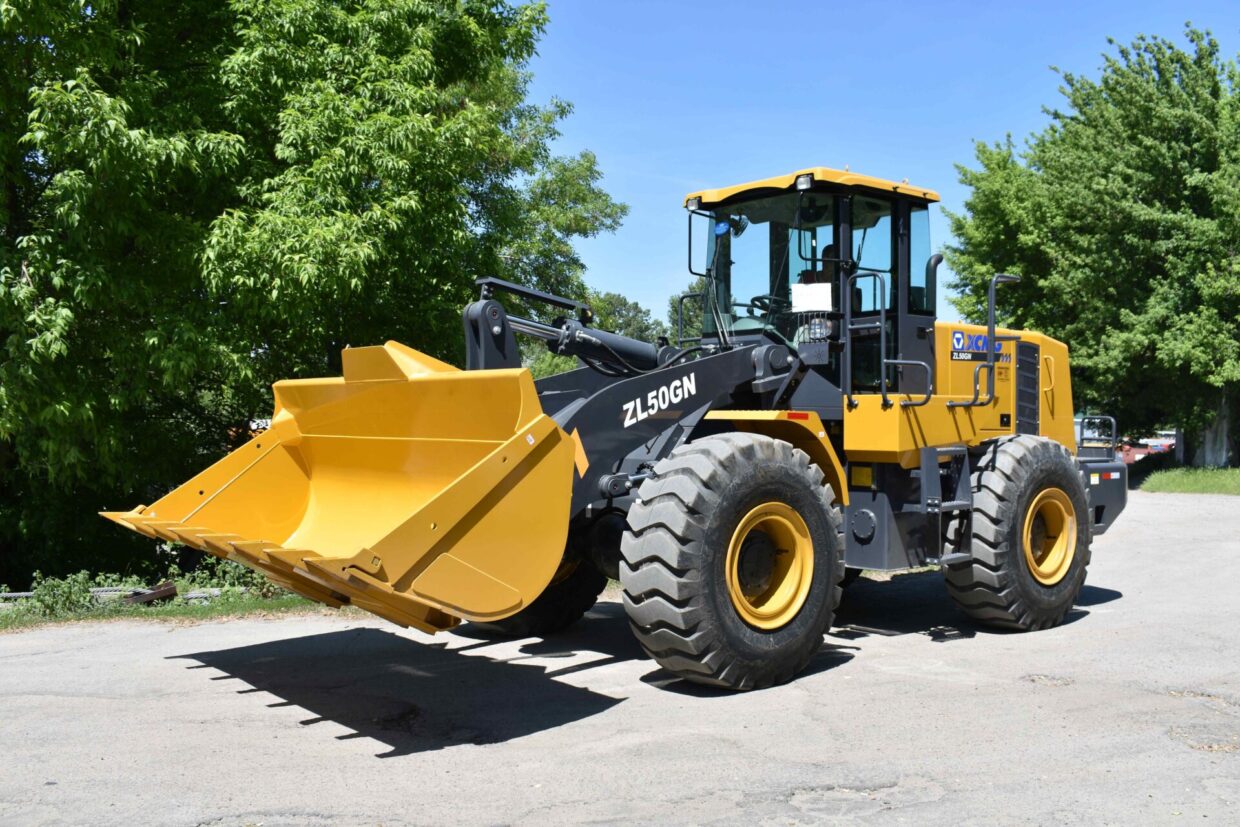

XCMG ZL50GN high efficiency wheel loader

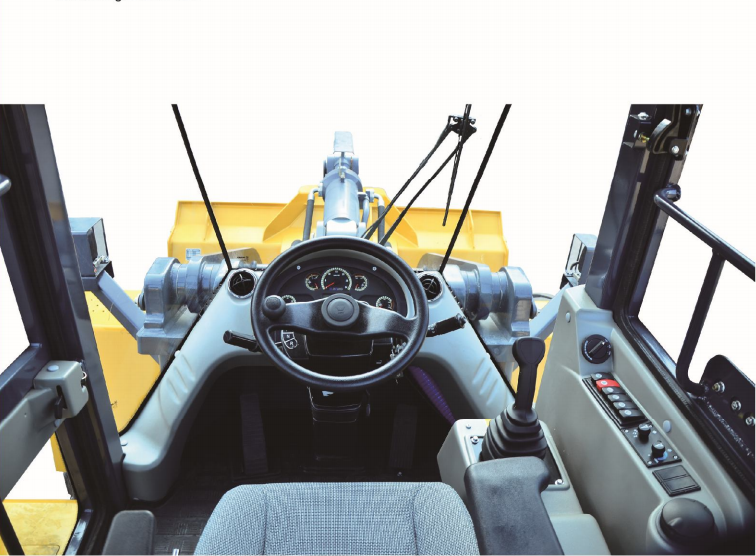

XCMG's exclusive high torque and high efficiency drive chain features reasonable matching.With extended wheelbase, the working capacity and stability are leading the industry.The centering design of main hinge joints reduces the turning radius and lowers the tire wear and energy consumption. The ergonomically design cab adopts integral skeleton structure, delicate interior trim parts, and sound insulation and noise reduction measure, featuring broad visual field, super-large space, and high operation comfort.The diversified configurations and complete attachments comprehensively adapt to the construction needs in different regions and under different working conditions.

    Product Details

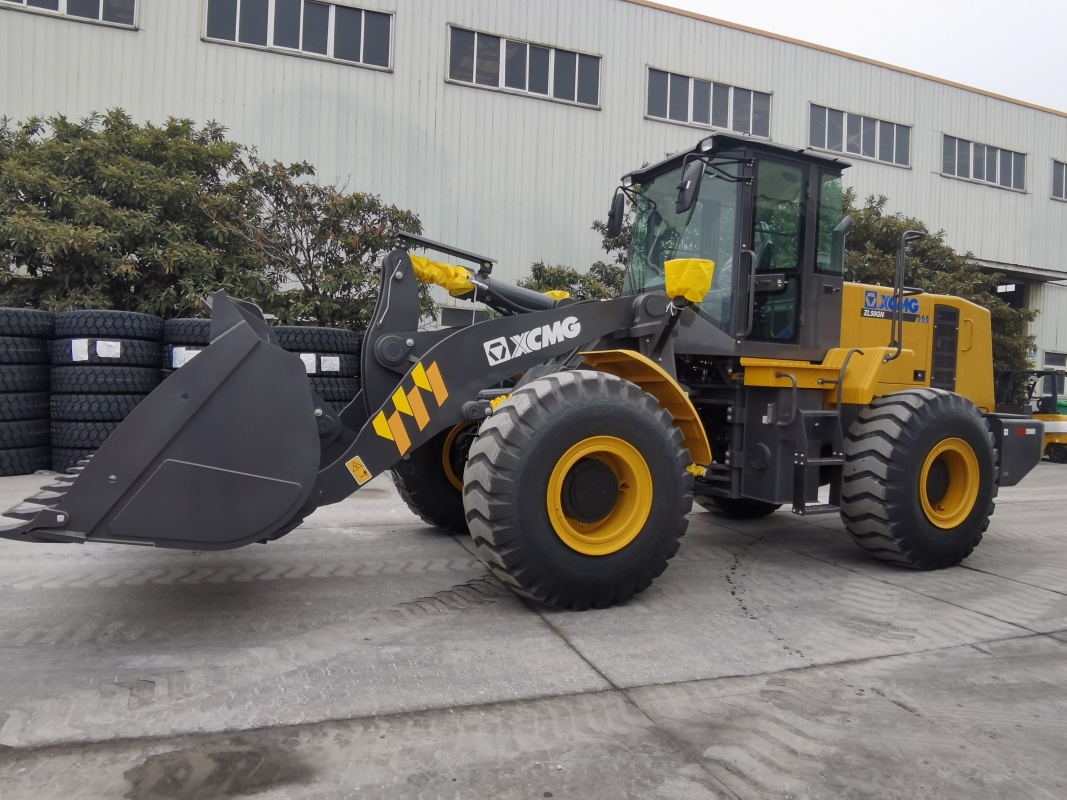

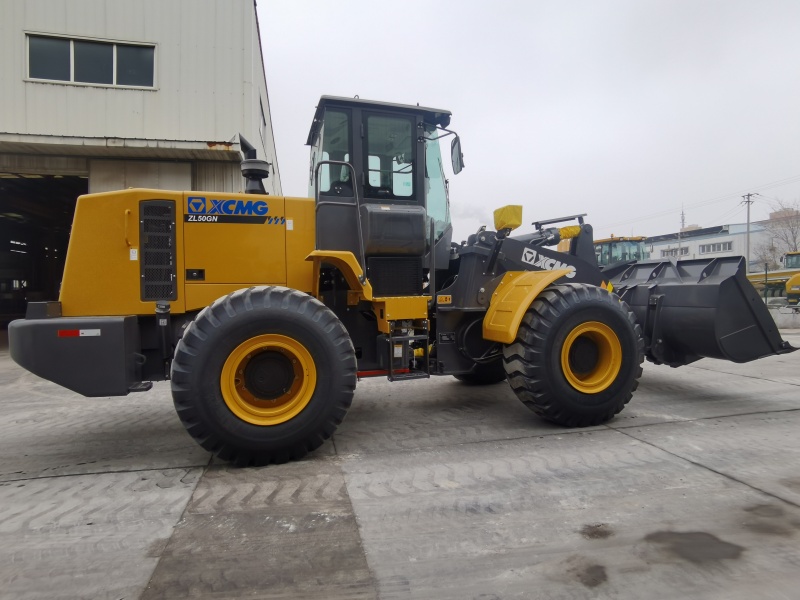

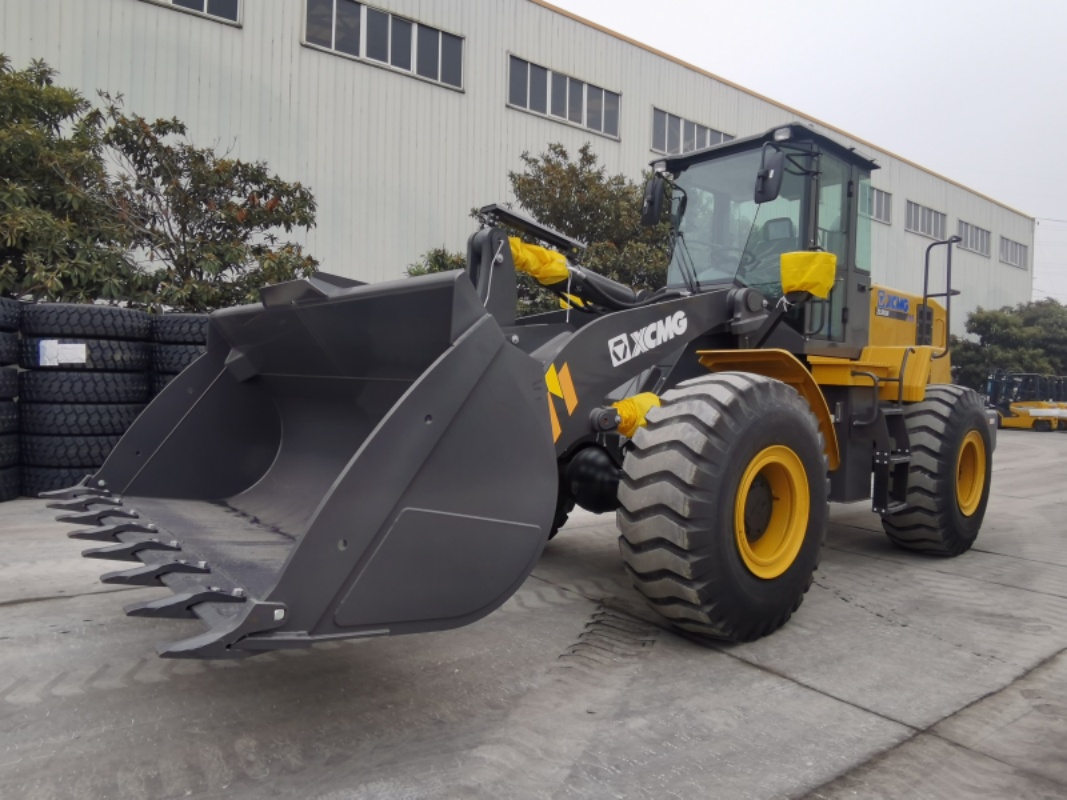

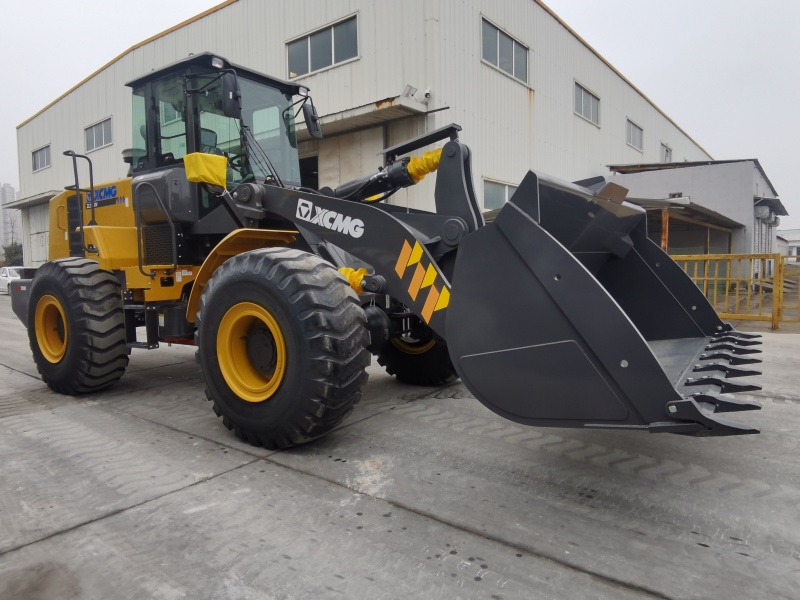

    IMG_20240118_122741(1)IMG_20240118_122718(1)IMG_20240118_122729(1)IMG_20240118_122656(1)

    Product Parameters

    Overall dimension
    Over machine dimension L×W×H 8225×3016×3515mm
    Wheelbase 3300mm
    Manchine weight 420mm
    Max.dumping height 17500±300kg
    Dump clearance at maximum lift 3100~3780mm
    Reach at maximum lift 1100~1220mm
    wheel tread 2250mm
    Articulation angle 38°
    Gradeability 30°
    Min.turning radius over tyres 5925±50mm
    Overall parameters
    Bucket capacity  2.5~4.5m³
    Rated load  5000kg
    Max.horse power  160±5kN
    Max. breakout force 175±5kN
    Engine
    Model  WD10G220E21
    Tyre size 23.5~25~16PR
    Rated power 162kW
    Transmission system
    Travel speed at forward gear/reverse gearI 13/17km/h
    Travel speed at forward gearII 41km/h
    Hydraulic system of working device
    Hydraulic cycle time-raise ≤6s
    Total time ≤10.5s
